SF Energy Watch Success Story: 10 South Park HOA
10 South Park HOA
The Board determined to upgrade its aging equipment while considering the benefit of energy use reduction and cost effectiveness. SF Energy Watch (SFEW) kicked-off the projects by providing a comprehensive energy assessment. The ensuing report provided estimated incentive-rebates which prompted the Board to replace inefficient lighting, ahead of schedule, as well as the domestic hot water system.
The Board used the services of SF Energy Watch participating contractors for both lighting and boiler installations. Both contractors quickly responded to its inquiries. Concurrently, the Department of the Environment staff was available to answer questions about equipment and rebate procedures.
In the common area, a total of thirteen (13) linear fluorescent fixtures with T12 lamps and magnetic ballasts were retrofitted with T8 lamps and electronic ballasts. In addition, motion sensors were installed so that 90% of the lights remained off unless activated by occupancy. All exit signs were upgraded from incandescent to LED.

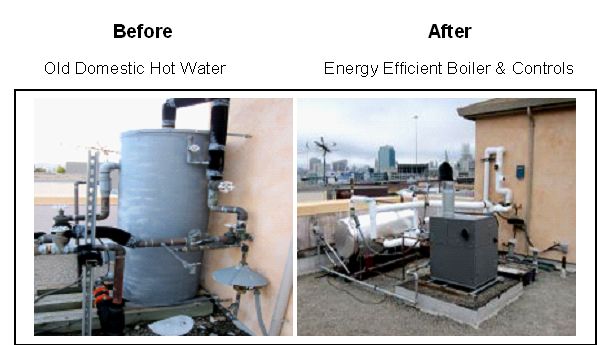

To further maximize energy use reduction, the Board decided to install a new domestic hot water system using the combined incentives from SF Energy Watch and the SF Boiler Systems Incentive program (SFBSIP). It includes a new Low NOx boiler, high-efficiency boiler digital controls with monitoring capabilities, and properly insulated hot water storage tank and pipes.
With the support and financial incentives provided by the SFEW and SFBSIP programs, the Board was able to invest in the right energy efficient equipment, lower operating costs and become more environmental friendly.
10 South Park HOA Profile
|
Location |
10 S. Park St in San Francisco |
|
Types of Space |

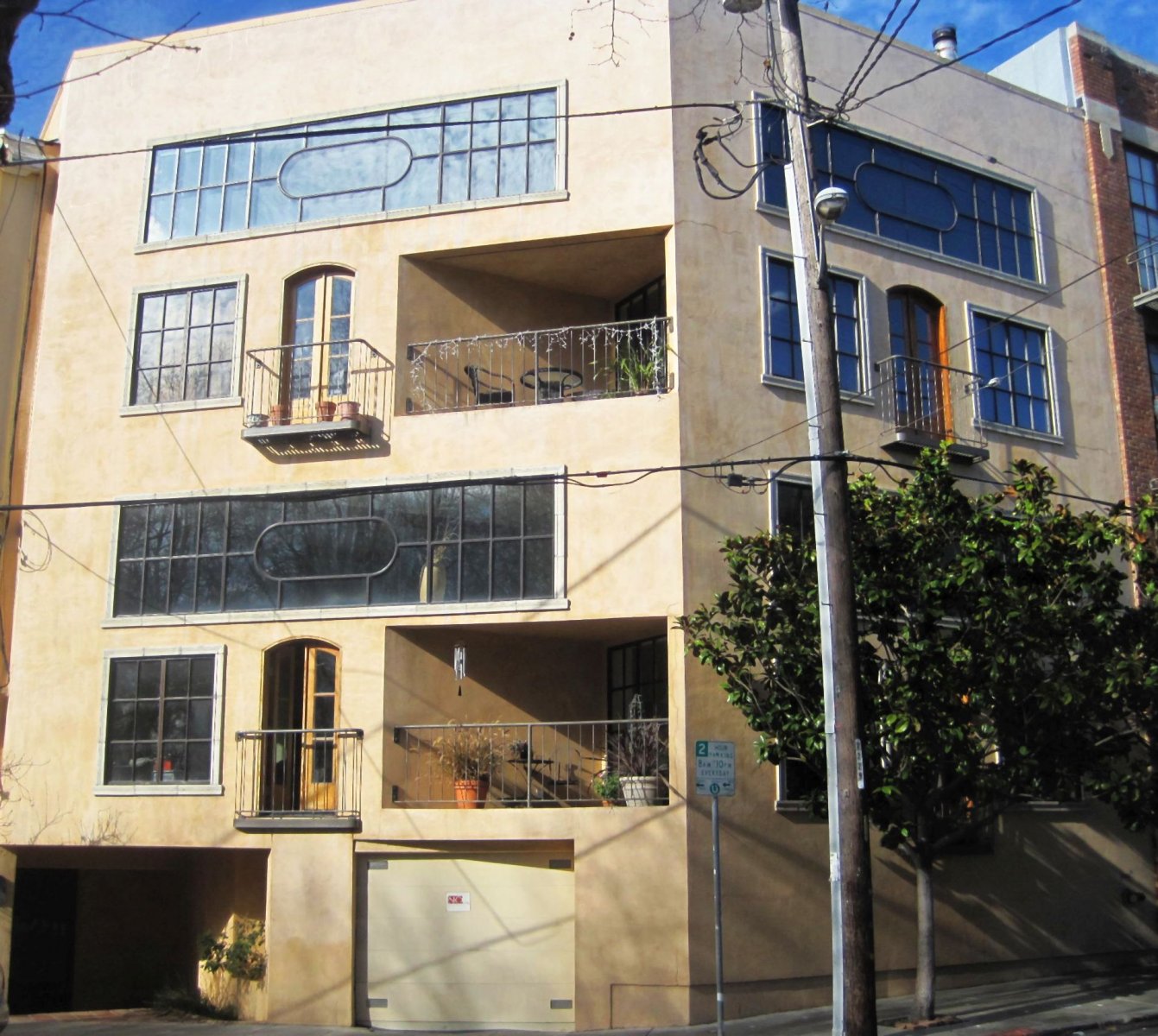

10-unit condominium complex with two structures bracketing a central, open courtyard, two parking garages, circulation corridors, two stair towers and the roof. |
|
Energy Efficiency Upgrades |
Lighting and motion sensors. Hot water system, high efficiency boiler and controls. |
Savings Benefits
Lighting Retrofit:
|
Total Project Cost |
$2,705 |
|
SFEW Incentive |
$ 945 |
|
Customer’s Co-Pay |
$1,760 |
|
Annual Savings |
$1,091 |
|
kW Reduction |
0.83 |
DHW Unit & Controller and Tank & Piping Insulation Replacement:
|
Total Project Cost |
$22,476 |
|
SFEW Incentive |
$ 1,033 |
|
SFBSIP Incentive |
$ 3,621 |
|
Customer’s Co-Pay |
$18,885 |
|
Annual Savings |
$820.3 (at $1 per therm) |
|
Therm Reduction |
820.30* |
* does not include storage tank insulation
